| Function | Projection (Mobile / Business) |
|---|
| Resolution | XGA – 1024 × 768 (4:3) |
|---|
| Brightness | 3,600 Lumens |
|---|

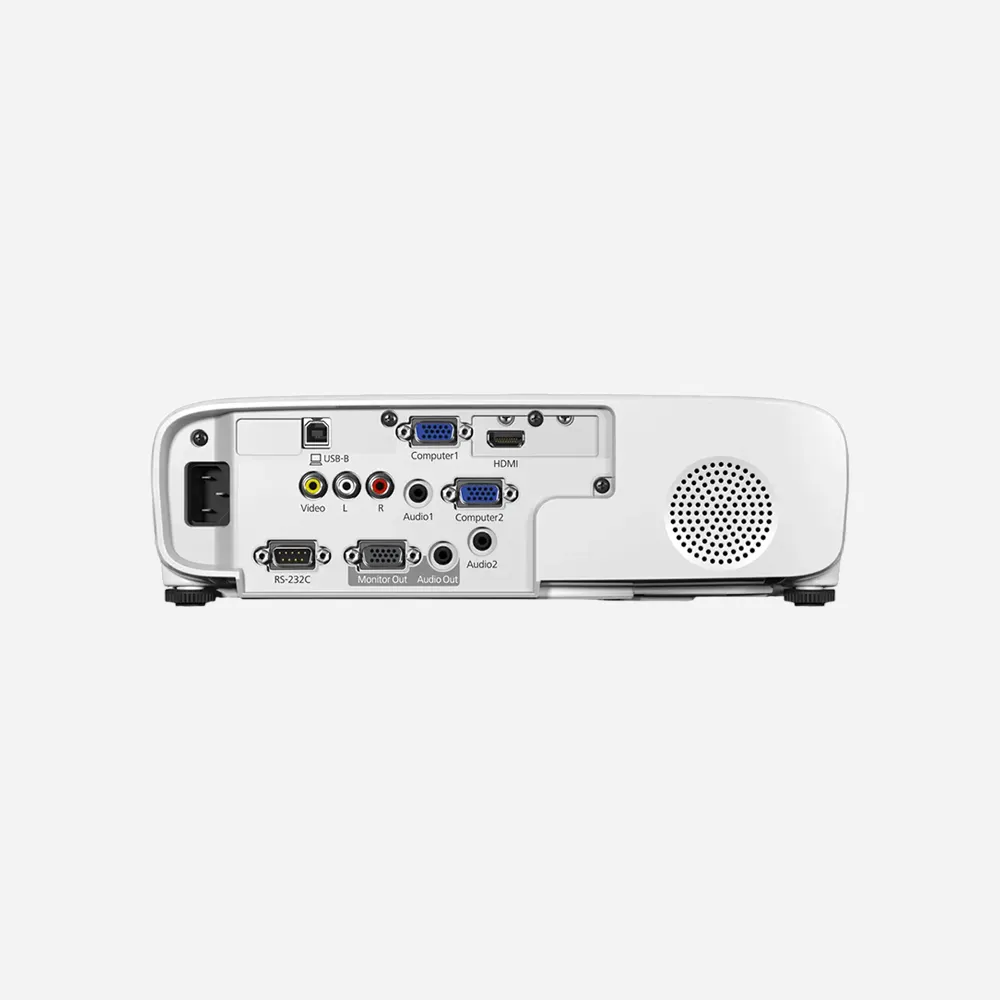

| Connectivity | USB 2.0 Type-A, USB 2.0 Type-B, RS-232C, Ethernet Interface (100 Base-TX / 10 Base-T), Wireless LAN a/n (5GHz) (Optional), VGA In (2×), VGA Out, HDMI In, Composite In, Stereo Mini Jack Audio In (2×), Stereo Mini Jack Audio Out, Cinch Audio In |
|---|
| Weight | 2.7 kg |
|---|
| In the Box | Main Unit, Computer Cable, Power Cable, Remote Control (with batteries), Quick Start Guide, Warranty Card |
|---|
| Projection System | 3LCD Technology, RGB Liquid Crystal Shutter |
|---|
| LCD Panel | 0.55" C2 Fine |
|---|
| Color Light Output | 3,600 Lumens (2,400 Lumens Eco) |
|---|
| White Light Output | 3,600 Lumens |
|---|
| Aspect Ratio | 4:3 |
|---|
| Contrast Ratio | 16,000:1 |
|---|
| Lamp Type | 210W UHE Lamp |
|---|
| Lamp Life | 6,000 Hours (Normal), 12,000 Hours (Eco) |
|---|
| Keystone Correction | Auto Vertical ±30°, Manual Horizontal ±30° |
|---|
| Color Reproduction | Up to 1.07 Billion Colors |
|---|
| Throw Ratio | 1.48 – 1.77:1 |
|---|
| Zoom | Digital Zoom |
|---|
| Screen Size | 30" – 300" |
|---|
| Lens F Number | F1.49 – F1.72 |
|---|
| Focal Length | 16.9 – 20.28 mm |
|---|
| Offset | 8:1 |
|---|
| USB Display | 3-in-1: Image / Mouse / Sound |
|---|
| USB Type-B | 1 × USB 2.0 |
|---|
| USB Type-A | 1 × USB 2.0 |
|---|
| HDMI Input | 1 × HDMI |
|---|
| VGA Input | 2 × VGA |
|---|
| VGA Output | 1 × VGA |
|---|
| Composite Input | 1 × Composite Video |
|---|
| Audio Input | 2 × Stereo Mini Jack, 1 × Cinch Audio |
|---|
| Audio Output | 1 × Stereo Mini Jack |
|---|
| Ethernet | 100 Base-TX / 10 Base-T |
|---|
| RS-232C | Yes |
|---|
| Wireless LAN | Optional 5GHz (a/n) |
|---|
| Epson iProjection | Ad-Hoc / Infrastructure |
|---|
| Security | Kensington Lock, Security Cable Hole, Wireless LAN Unit Lock |
|---|
| Video Color Modes | Blackboard, Dynamic, Presentation, sRGB, Theatre |
|---|
| Special Features | AV Mute Slide, Auto Keystone, Built-in Speaker, Digital Zoom, Direct Power On/Off, Network Projection, PC Free, Quick Corner, Split Screen, QR Code Setup |
|---|
| Power Consumption | 327W (Normal), 225W (Eco) |
|---|
| Noise Level | 37 dB (Normal), 28 dB (Eco) |
|---|
