Technical specifications

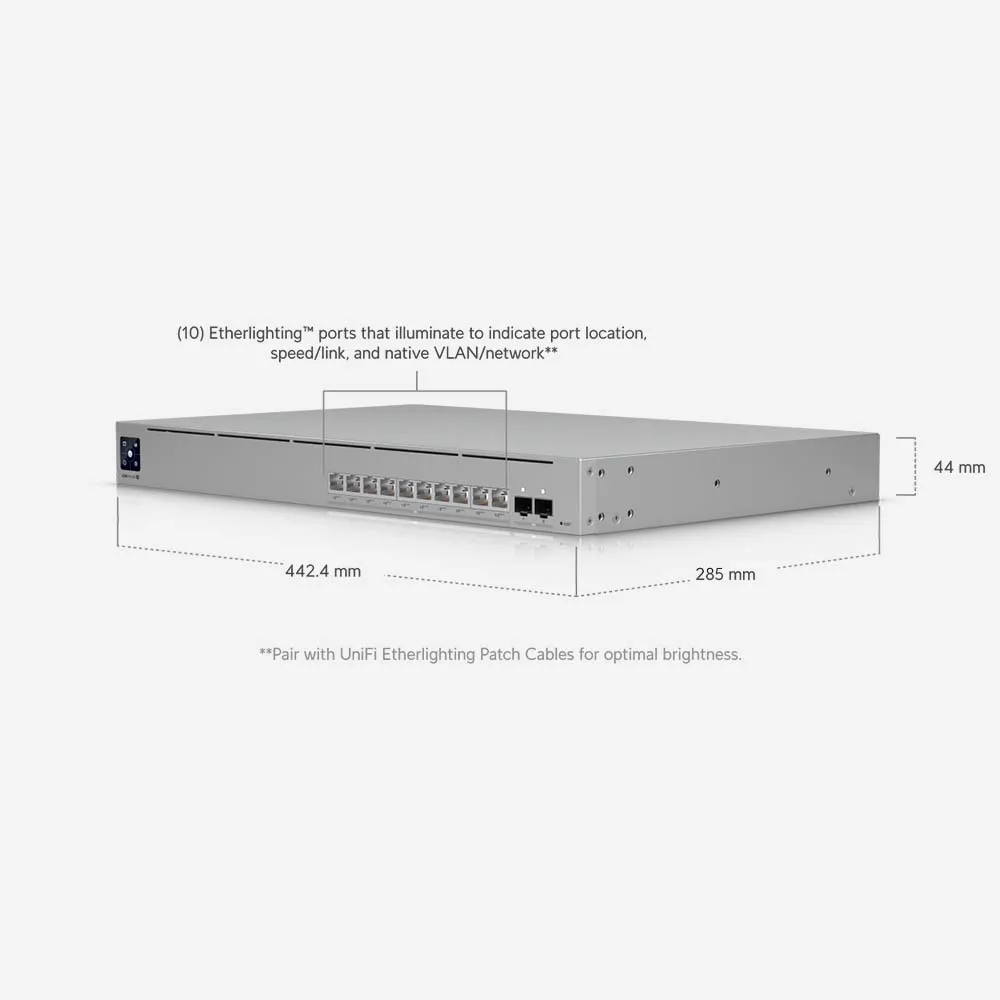

| Dimensions | 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
|---|---|

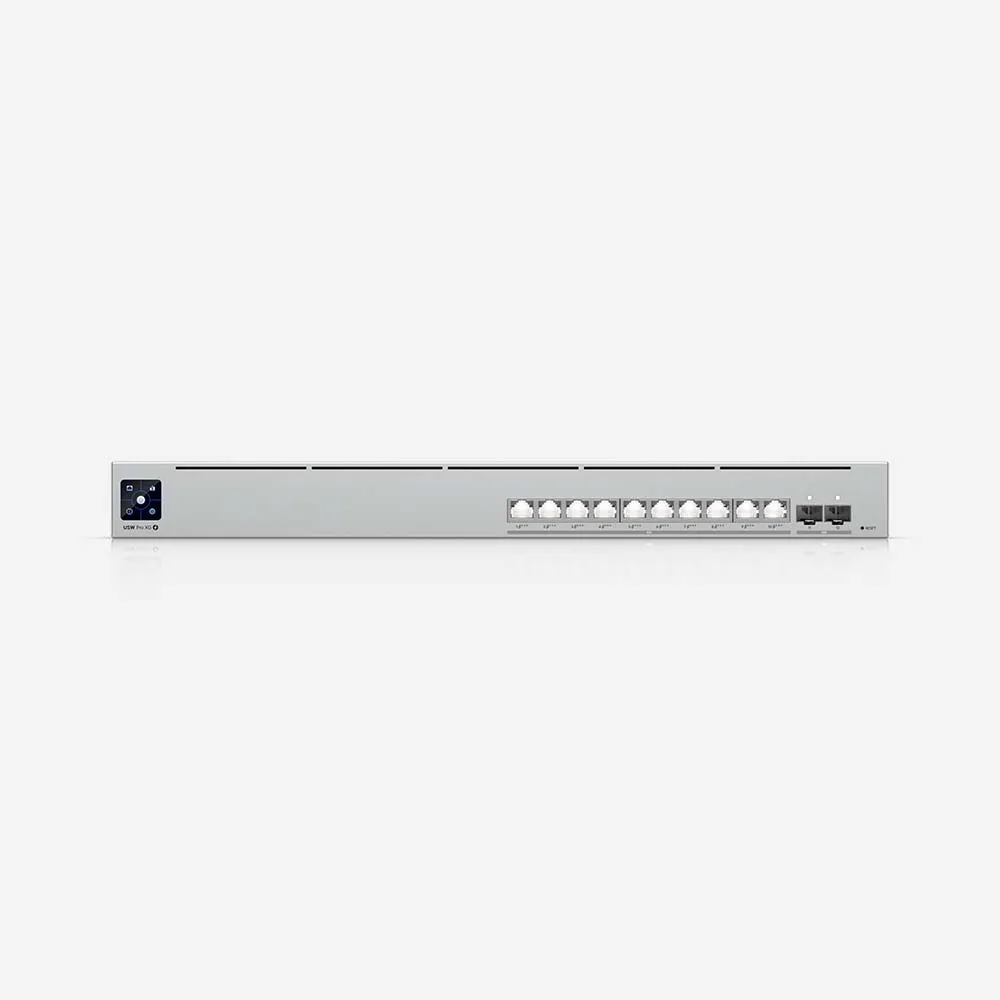

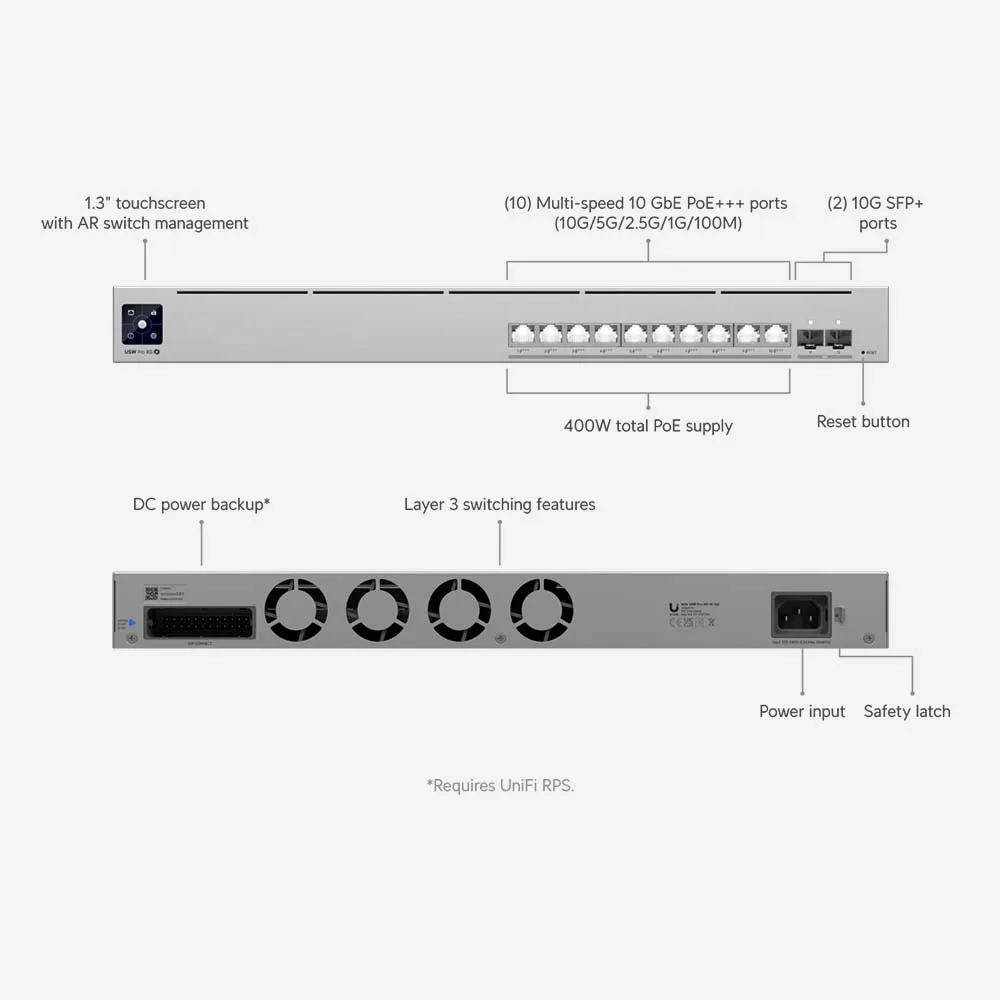

| Port Layout | 10 GbE RJ45 (10G/5G/2.5G/1G/100M): 10 Ports (All PoE+++)10G SFP+ (10G/1G): 2 Ports |
| 10 GbE RJ45 (10G/5G/2.5G/1G/100M) | 10 Ports (All PoE+++) |
| 10G SFP+ (10G/1G) | 2 Ports |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 400W |

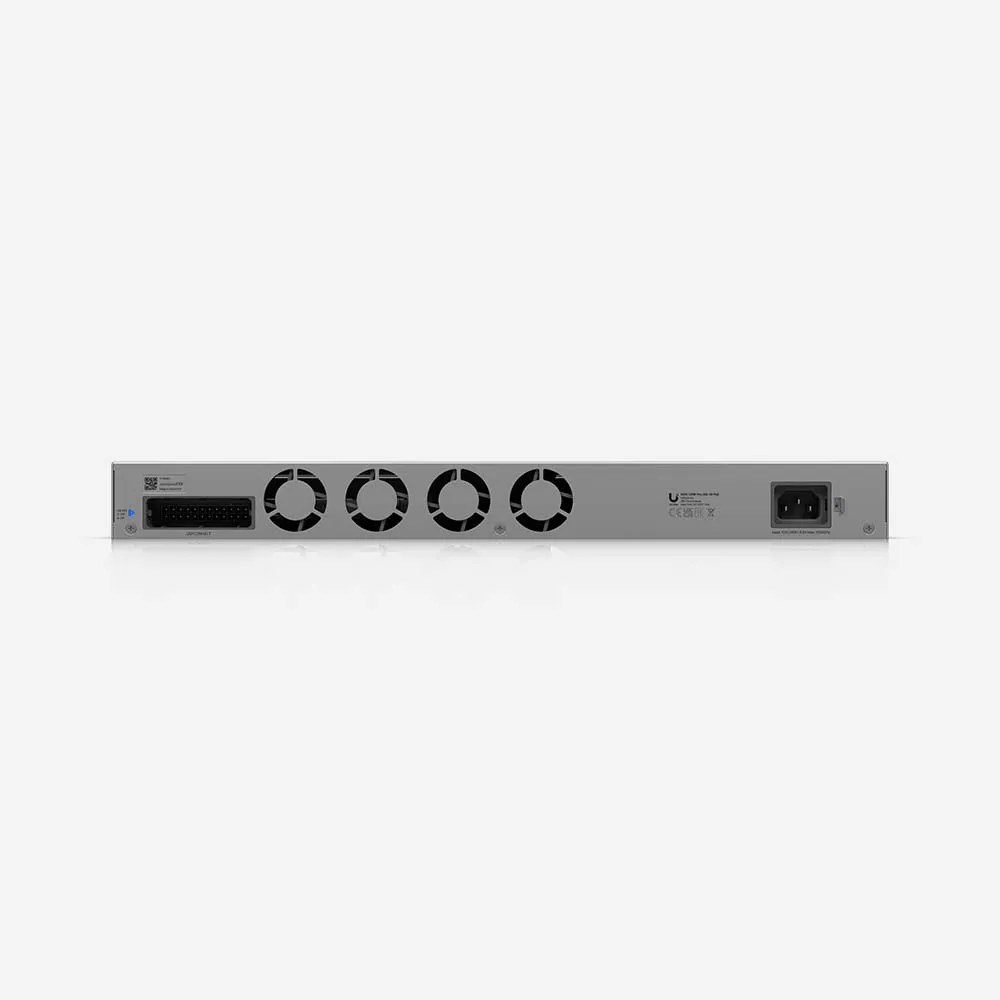

| Redundancy | DC Power Backup |
| Layer Support | Layer 3 |
| Form Factor | Rack mount (1U) |

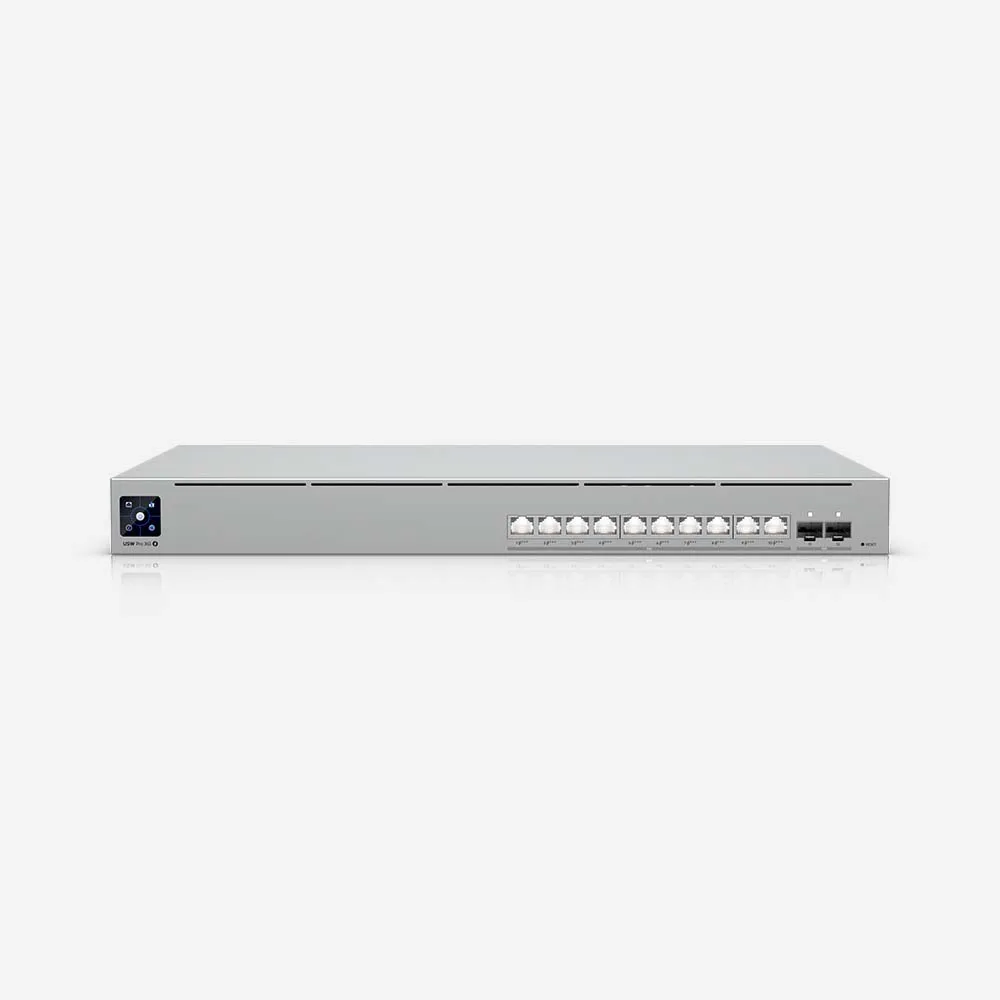

| Etherlighting™ | Yes |
| Performance | Switching Capacity: 240 GbpsTotal Non-Blocking Throughput: 120 GbpsForwarding Rate: 179 MppsSupported VLANs: 1,000MAC Address Table Size: 32,000IPv4 Static Routes: 256Packet Buffer Size: 2 MB |
| Switching Capacity | 240 Gbps |
| Total Non-Blocking Throughput | 120 Gbps |
| Forwarding Rate | 179 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
