Technical specifications
| Projection System | Epson 3LCD Laser |
|---|---|
| Chip Design | 3-Chip Architecture |
| Projection Method | Front / Rear / Ceiling (Upside Down) |
| Product Color | Black |
| Panel Type | 0.62" Poly-silicon TFT Active Matrix |
| Native Resolution | Full HD (1920 × 1080) |
| Aspect Ratio | 16:9 |
| 4:3 Compatibility | Yes |
| Color Brightness | 1,000 Lumens |
| White Brightness | 1,000 Lumens |
| Contrast Ratio | 200,000:1 |
| Color Reproduction | Up to 16.77 Million Colors |
| Image Size | 30" – 150" |
| Keystone Correction | Auto Vertical ±34°, Manual Horizontal ±40° |
| Color Processing | Full 10-bit |
| Light Source | Laser Diode |
| Light Source Life | 20,000 Hours (Normal / Quiet Mode) |
| Lens Type | Manual Focus (No Optical Zoom) |
| F-number | F2.0 |
| Focal Length | 13.9 mm |
| Throw Ratio | 1:1 |

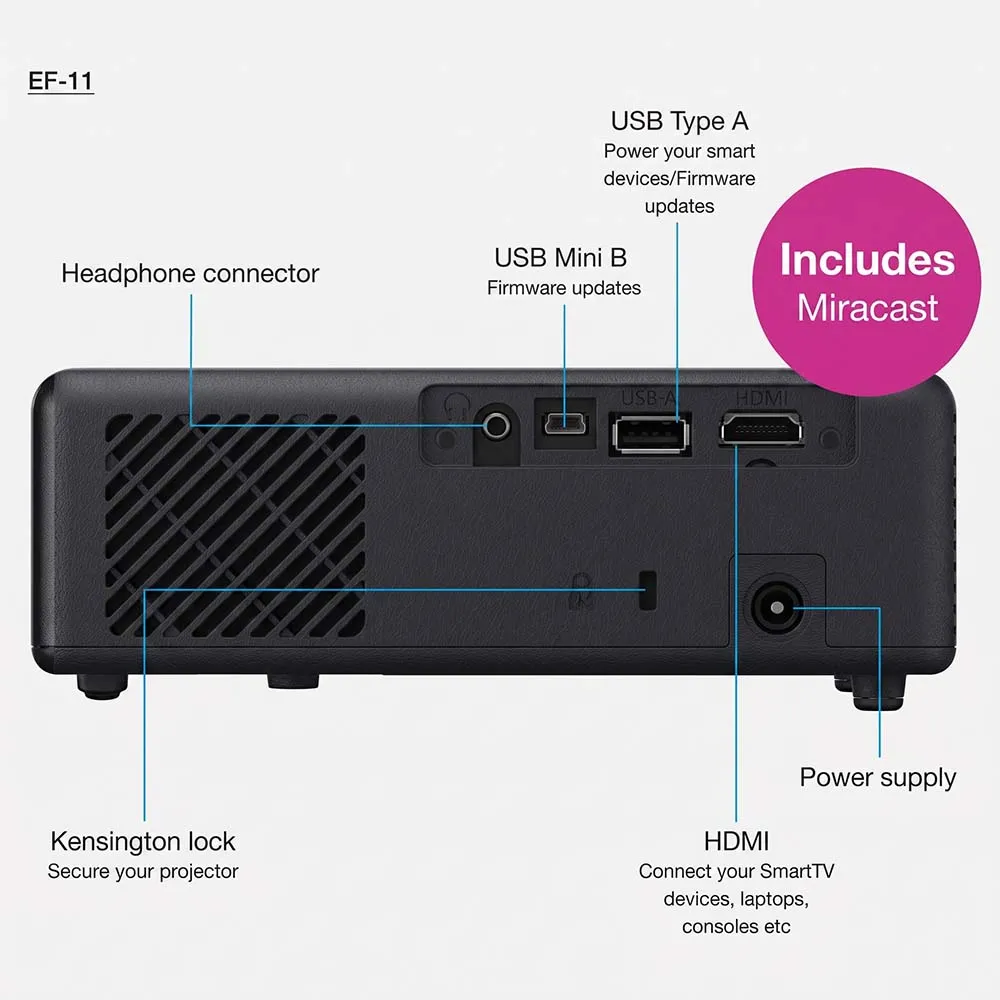

| HDMI Input | 1 × HDMI (HDCP 1.4) |
| USB Type-A | 1 × (5V/2A Power, PC-Free, Firmware Update) |
| USB Type-B | 1 × Mini (Service) |
| Audio Output | 1 × Stereo Mini Jack |
| Color Modes | Dynamic, Vivid, Bright Cinema, Natural, Cinema |
| Built-in Speaker | 1.5W (2-Way Mono) |
| Power Consumption | 102W (Normal), 73W (Eco) |
| Power Supply | AC 100–240V, 50/60Hz |
| Noise Level | 22–27 dB |
| Operating Temperature | 5°C – 30°C |
| Dimensions (W × D × H) | 6.9" × 6.9" × 2.6" (Including Feet) |
| Weight | 2.7 lb |
| Remote Control | Front Directional, 5 m Range, ±30° Horizontal / ±15° Vertical |
| Security | Kensington Lock |
| Eco Features | RoHS Compliant, Recyclable Product, SmartWay Transport Partner |

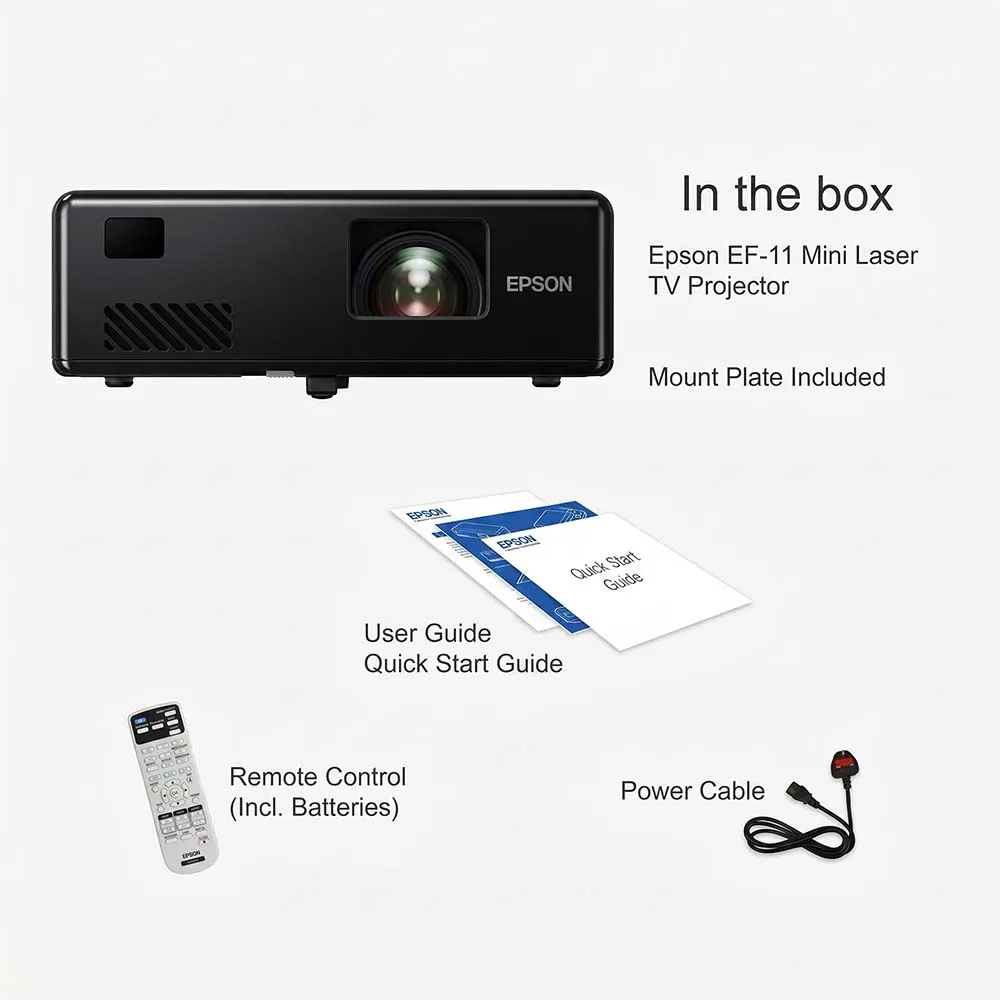

| Included Items | EF11 Projector, Power Supply, Remote Control, 2× AAA Batteries, Quick Setup Guide |
| Warranty | 2-Year Limited Warranty + Optional Extended Service Plans |
